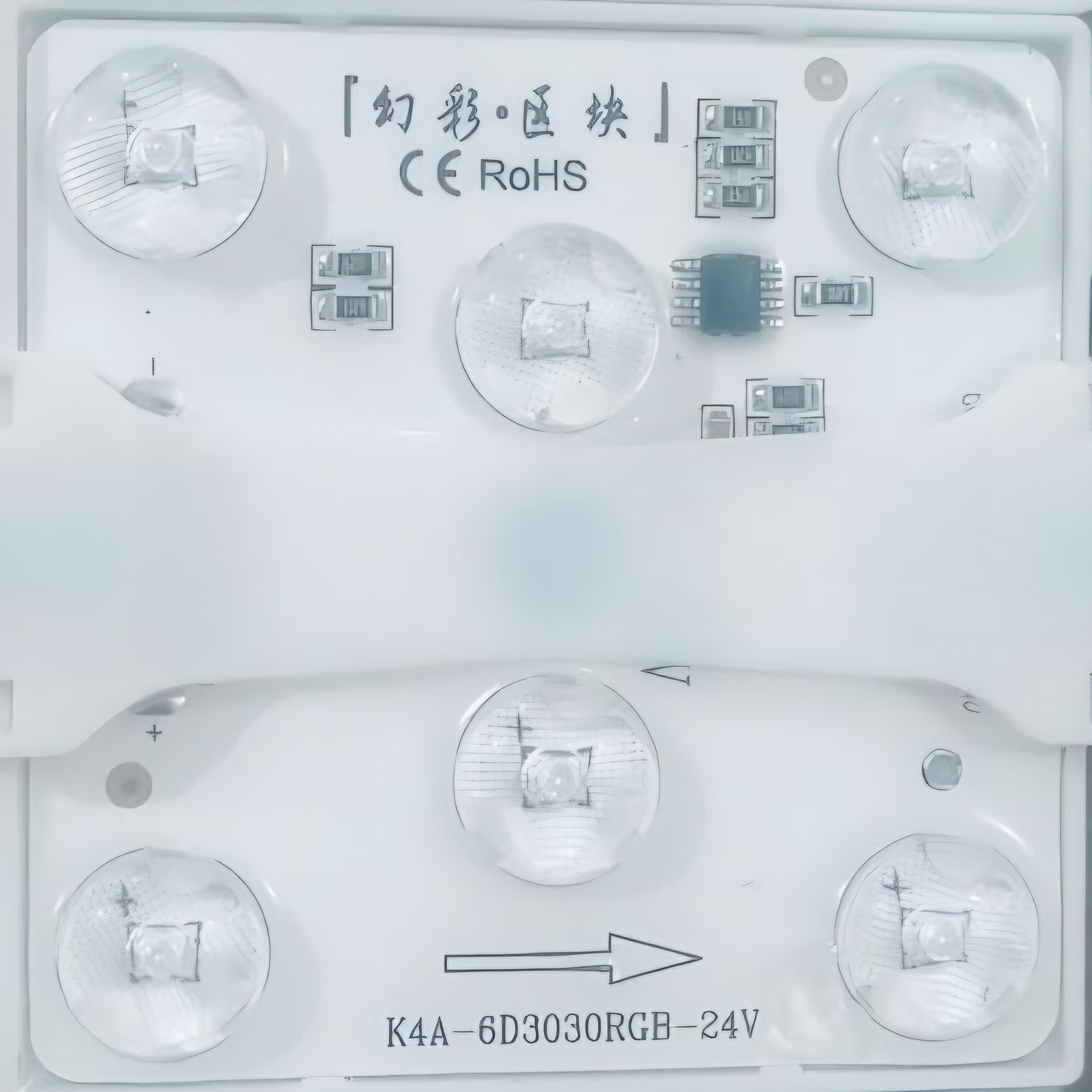

LED Waterproof SPI Pixel Module Pakistan — Programmable Signage & Stretch Fabric Pixel Mapping | ₨ 10,000/module
Problem: Standard RGB LED strips cannot produce pixel-level animations, text scrolling, or video-mapped content required for modern programmable signage and stretch fabric ceilings in Pakistan’s premium retail and hospitality sectors. Solution: LED Waterproof SPI Pixel Module delivers individually addressable pixel control via SPI protocol, IP65 weatherproof reliability, and DC 24V operation for large-scale installations across Islamabad, Lahore, and Karachi. ₨ 10,000 per module. 💬 WhatsApp to Order
Why SPI Pixel Module vs Standard RGB LED Strips?
| Feature | SPI Pixel Module (This Product) | Standard RGB LED Strip | Addressable RGB Strip (WS2812B) |
|---|---|---|---|
| Pixel Control | Individually addressable via SPI protocol — each pixel controlled independently for complex animations, text, and pixel-mapped video | All LEDs change colour simultaneously — no pixel-level control; limited to solid colours or simple fades | Individually addressable but typically IP20-IP33; requires additional waterproofing for outdoor Pakistan installations |
| Weather Resistance | IP65 per IEC 60529 — dust-tight + water-jet resistant; suitable for Karachi coastal, KPK monsoon, Quetta desert outdoor installations | Often IP20-IP65; depends on silicone coating quality; vulnerable at cut points and connection joints | Often IP30-IP65; pixel ICs vulnerable to moisture ingress at high humidity; requires additional conformal coating for Pakistan climates |
| Long-Run Performance | DC 24V operation halves current vs 12V; maintains consistent brightness over 20m runs without mid-run power injection — critical for large facade projects | 12V operation suffers significant voltage drop beyond 5m; requires frequent power injection points increasing installation complexity and cost | 5V operation suffers severe voltage drop beyond 3m; requires power injection every 2-3m; impractical for large-scale Pakistan commercial installations |
| Best For | Programmable signage, stretch fabric ceiling pixel mapping, architectural facade animation, entertainment venue lighting across Pakistan | Simple ambient cove lighting, under-cabinet accent lighting, basic colour-changing applications where pixel control not required | Small-scale indoor pixel art projects, DIY hobbyist installations, low-budget applications where weather resistance not critical |
Technical Specifications
| Parameter | Specification |
|---|---|
| Protocol | SPI (Serial Peripheral Interface) — individually addressable pixels |
| Voltage | DC 24V — reduced voltage drop for long runs up to 20m |
| Power per Module | 5W RGB full colour — 16.7 million colours |
| Pixel Density | 20 modules per metre — high resolution for smooth animations |
| IP Rating | IP65 per IEC 60529 — dust-tight + water-jet resistant |
| Operating Temperature | -10°C to +60°C — suitable for GB cold to Quetta heat |
| LED Lifespan | 50,000+ hours (L70) under normal operating conditions |
| Controller Compatibility | Voltedge LED 510 Main Controller, DMX Sub-Controller 408, Madrix software |
| Certifications | CE, RoHS, NEECA MEPS compliant |
| Warranty | 12 months manufacturer warranty |
| Price | ₨ 10,000 per module |
Which Application Should You Choose?
| Application | Installation Tip | Why (Pakistan Context) |
|---|---|---|
| Programmable Digital Signage | Mount modules on aluminium backing with thermal paste; use DC 24V power supply with 20% overhead capacity for peak loads | Ideal for retail storefronts in DHA Islamabad, Gulberg Lahore; IP65 withstands monsoon humidity and Punjab dust storms for year-round outdoor reliability |
| Stretch Fabric Ceiling Animation | Space modules 50mm apart (20/m) behind translucent fabric; test pixel mapping in Madrix before final installation | High-resolution pixel density enables smooth brand animations for PSO VIBE stores and premium hospitality venues; DC 24V reduces heat buildup in enclosed ceiling cavities |
| Architectural Facade Pixel Mapping | Use SPI data repeaters every 15m for signal integrity; seal all cable entries with silicone gaskets for IP65 maintenance | Critical for commercial plazas in Blue Area Islamabad and Clifton Karachi where dynamic facade lighting distinguishes premium developments; voltage-fluctuation-tolerant controllers ensure reliability |
Applications
- Programmable Digital Signage — Ideal for retail storefronts in DHA Islamabad, Gulberg Lahore; IP65 withstands monsoon humidity and Punjab dust storms for year-round outdoor reliability
- Stretch Fabric Ceiling Animation — High-resolution pixel density enables smooth brand animations for PSO VIBE stores and premium hospitality venues; DC 24V reduces heat buildup in enclosed ceiling cavities
- Architectural Facade Pixel Mapping — Critical for commercial plazas in Blue Area Islamabad and Clifton Karachi where dynamic facade lighting distinguishes premium developments; voltage-fluctuation-tolerant controllers ensure reliability
- Entertainment Venue Lighting — Music-reactive pixel effects for nightclubs and event spaces in Lahore and Karachi; SPI protocol enables real-time audio synchronization via Madrix software
- Regional Adaptability — IP65 housing + DC 24V operation ensures reliability in KPK monsoons, Balochistan heat (45°C+), GB cold snaps (-10°C), and Karachi coastal salt-air conditions
🚚 Shipping & Delivery:
- Pakistan: Free shipping on orders ≥ PKR 15,000 | Dispatch 1–2 days | Nationwide delivery 2–5 days
- Installation: Requires DC 24V power supply + SPI pixel controller (sold separately); professional installation recommended for facade and stretch fabric applications; all mounting hardware included; electrical connections must be made by qualified electrician per Pakistan Electrical Safety Code
FAQs
What is SPI protocol and why use it for pixel modules?
SPI (Serial Peripheral Interface) allows a controller to send unique colour and timing data to each pixel independently on a single data line. This enables complex animations, pixel-mapped video, and music-reactive effects impossible with standard RGB strips. Voltedge’s SPI modules work with our LED 510 Main Controller and professional Madrix software for large-scale Pakistan installations.
Is IP65 sufficient for outdoor signage in Pakistan’s monsoon season?
Yes. IP65 per IEC 60529 certifies the module housing is dust-tight and protected against low-pressure water jets from any direction. This is sufficient for outdoor signage and facade installations across Pakistan’s monsoon season (June-September), dust storms (April-June), and temperature swings from Karachi coastal humidity to Quetta desert heat.
Why choose DC 24V over 12V for pixel module installations?
At 5W per module, 24V operation halves the current versus 12V, significantly reducing voltage drop over long runs. For facade installations with continuous runs of 10-20 metres common in Pakistan commercial plazas, 24V maintains consistent colour brightness from first to last module without mid-run power injection.
Can these modules be used with stretch fabric ceiling systems?
Yes. Voltedge’s SPI pixel modules are designed for stretch fabric ceiling applications. Mount modules behind translucent fabric with 20 modules/metre spacing for high-resolution pixel mapping. Compatible with Voltedge’s stretch fabric ceiling systems and programmable via LED Edit or Madrix software for dynamic ceiling animations in retail and hospitality venues.
🔧 Technical Details (Click to Expand)
- Why SPI Protocol for Professional Pixel Mapping: SPI (Serial Peripheral Interface) is the professional standard for individually addressable LED pixels because it provides deterministic timing, high data rates, and robust signal integrity over long cable runs. Unlike simpler protocols that may suffer from timing drift or signal degradation, SPI ensures every pixel receives its exact colour and timing command simultaneously — critical for smooth animations and pixel-mapped video content on building facades across Pakistan’s commercial developments.
- IP65 Engineering for Pakistan’s Diverse Climates: The module housing uses UV-stable ABS plastic with silicone gaskets at all seams to prevent dust ingress and water penetration. This design withstands Karachi’s salt-air corrosion, Punjab’s dust storms, and KPK’s monsoon humidity while maintaining optical clarity for the LEDs and signal integrity for the SPI data lines over years of outdoor exposure.
- DC 24V Advantage for Large-Scale Installations: At 5W per module, 24V operation draws half the current of equivalent 12V systems. This reduces resistive losses in wiring, allowing continuous runs up to 20 metres without mid-run power injection points. For facade installations in Pakistan commercial plazas where aesthetic continuity is critical, this eliminates visible brightness gradients and simplifies installation labour costs.
- Compliance Framework: CE (European safety), RoHS (hazardous substances restriction), NEECA MEPS (Pakistan energy standards). All products tested for voltage fluctuation tolerance (180-260V) in the SPI controller interface circuitry to handle Pakistan’s unstable grid conditions during occasional hybrid power scenarios.
